Coastal Outdoor Kiosk Digital Signage Benefits

Last Updated on July 24, 2026 by Craig Allen Keefner

Quick run through on Outdoor kiosk that we found worthwhile. Experimenting with Kimi.

Decent starting point for outdoor we think. Saline is major concern (stainless steel).

Coastal Outdoor Digital Signage & Kiosk Deployment Checklist

Table of Contents

Saline Air / Marine Environment Specification Guide

Draft for Field Use

How to Use This Checklist
• Pre-Specification: Use Sections 1–4 during RFP/ design phase.
• Pre-Installation: Use Sections 5–7 during site survey and procurement.
• Post-Installation: Use Section 8 during commissioning and handover.
• Maintenance: Use Section 9 for PM schedules.

Severity Zones:
• Zone A: Coastal within 1 mile of saltwater (highest risk)
• Zone B: Coastal 1–5 miles of saltwater (moderate risk)
• Zone C: Coastal 5–10 miles of saltwater (elevated risk vs. inland)

One Pager

COASTAL OUTDOOR SIGNAGE — FIELD TECH QUICK REFERENCE

Saline Air / Marine Environment — Laminate & Keep in Truck

KMA.global | industrygroup.org

ZONE DEFINITIONS (Distance from Saltwater)

ZONE A: Within 1 mile — HIGHEST RISK
ZONE B: 1–5 miles — MODERATE RISK

ZONE C: 5–10 miles — ELEVATED RISK

MATERIALS — IF IT’S NOT 316, IT’S WRONG

Component Minimum Spec Zone A Zone B Zone C Enclosure Marine-grade 316

SS or AAMA

2605 aluminum

Fasteners 316 stainless steel (no zinc-plated)

Hinges/Latches 316 SS or marine

polymer

ConduitPVC-coatedRMC or fiberglass (no EMT)

GroundBus 316stainless steel

Cooling Coil Copper-nickel or coated aluminum

= Required = Recommended

SEALING — SALT GETS IN EVERYWHERE

Enclosure rated IP65 minimum (IP66 in Zone A)
Continuous EPDM gasket with compression latch (not screw-down)
Cable glands: IP68 with salt-resistant seals
Pressure equalization: breather valve with hydrophobic membrane
Condensate drain: self-draining with marine-grade valve
No passive vents in Zone A — filtered forced-air only

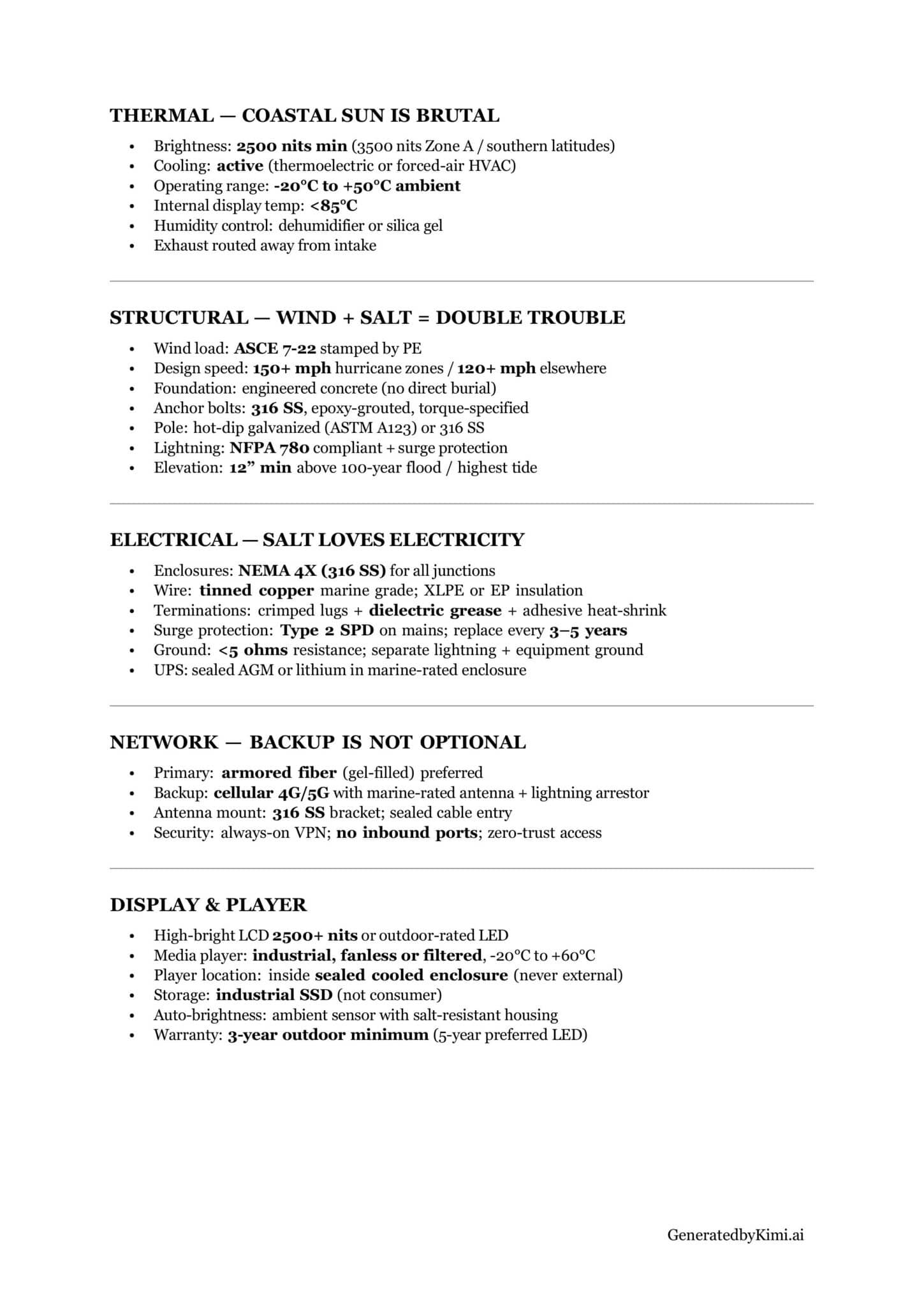

THERMAL — COASTAL SUN IS BRUTAL

Brightness: 2500 nits min (3500 nits Zone A / southern latitudes)
Cooling: active (thermoelectric or forced-air HVAC)
Operating range: -20°C to +50°C ambient
Internal display temp: <85°C
Humidity control: dehumidifier or silica gel
Exhaust routed away from intake

STRUCTURAL — WIND + SALT = DOUBLE TROUBLE

Wind load: ASCE 7-22 stamped by PE
Design speed: 150+ mph hurricane zones / 120+ mph elsewhere
Foundation: engineered concrete (no direct burial)
Anchor bolts: 316 SS, epoxy-grouted, torque-specified
Pole: hot-dip galvanized (ASTM A123) or 316 SS
Lightning: NFPA 780 compliant + surge protection
Elevation: 12” min above 100-year flood / highest tide

ELECTRICAL — SALT LOVES ELECTRICITY

Enclosures: NEMA 4X (316 SS) for all junctions
Wire: tinned copper marine grade; XLPE or EP insulation
Terminations: crimped lugs + dielectric grease + adhesive heat-shrink
Surge protection: Type 2 SPD on mains; replace every 3–5 years
Ground: <5 ohms resistance; separate lightning + equipment ground
UPS: sealed AGM or lithium in marine-rated enclosure

NETWORK — BACKUP IS NOT OPTIONAL

Primary: armored fiber (gel-filled) preferred
Backup: cellular 4G/5G with marine-rated antenna + lightning arrestor
Antenna mount: 316 SS bracket; sealed cable entry
Security: always-on VPN; no inbound ports; zero-trust access

DISPLAY & PLAYER

High-bright LCD 2500+ nits or outdoor-rated LED
Media player: industrial, fanless or filtered, -20°C to +60°C
Player location: inside sealed cooled enclosure (never external)
Storage: industrial SSD (not consumer)
Auto-brightness: ambient sensor with salt-resistant housing
Warranty: 3-year outdoor minimum (5-year preferred LED)

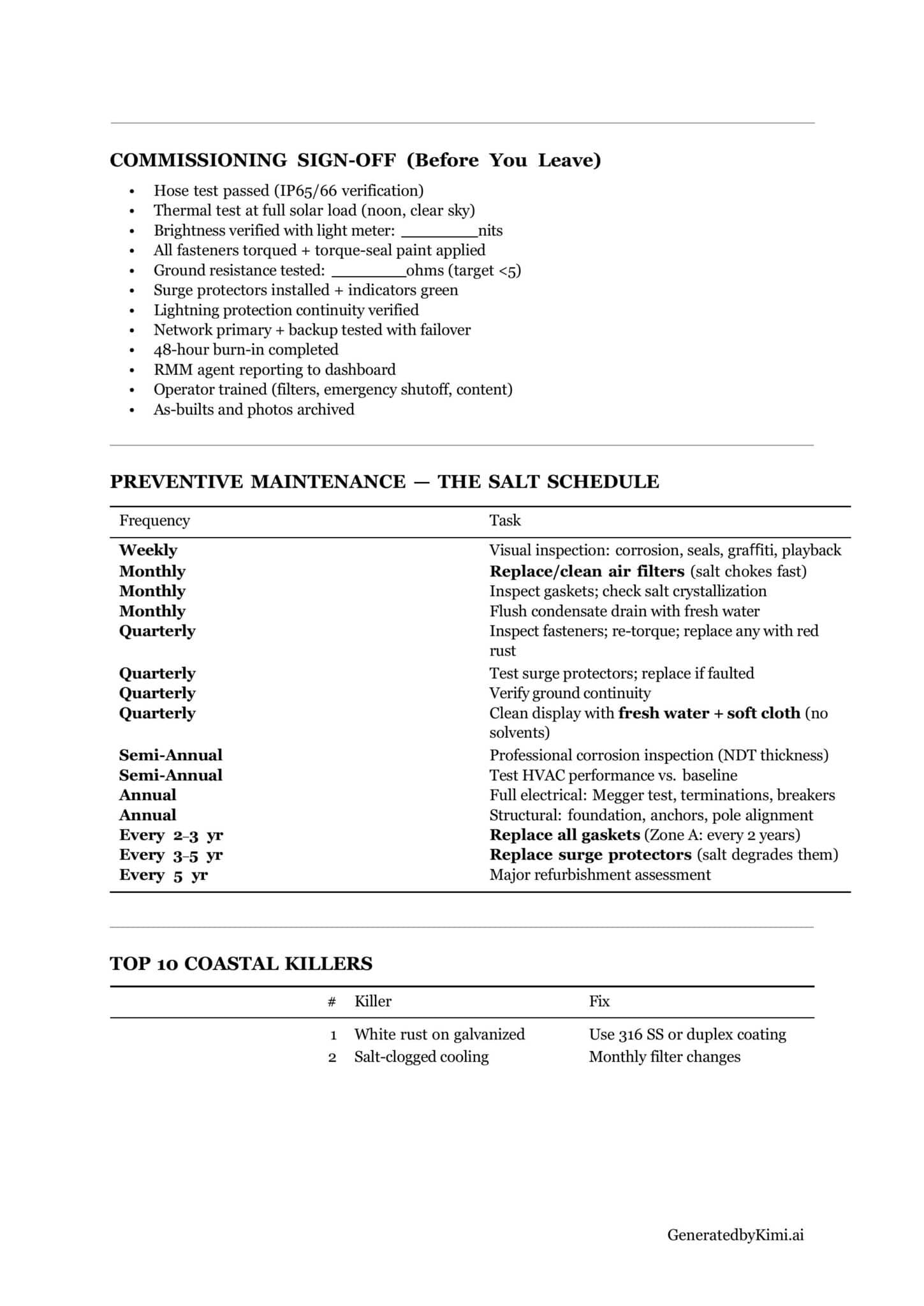

COMMISSIONING SIGN-OFF (Before You Leave)

Hose test passed (IP65/66 verification)
Thermal test at full solar load (noon, clear sky)
Brightness verified with light meter: nits
All fasteners torqued + torque-seal paint applied
Ground resistance tested: ohms (target <5)
Surge protectors installed + indicators green
Lightning protection continuity verified
Network primary + backup tested with failover
48-hour burn-in completed
RMM agent reporting to dashboard
Operator trained (filters, emergency shutoff, content)
As-builts and photos archived

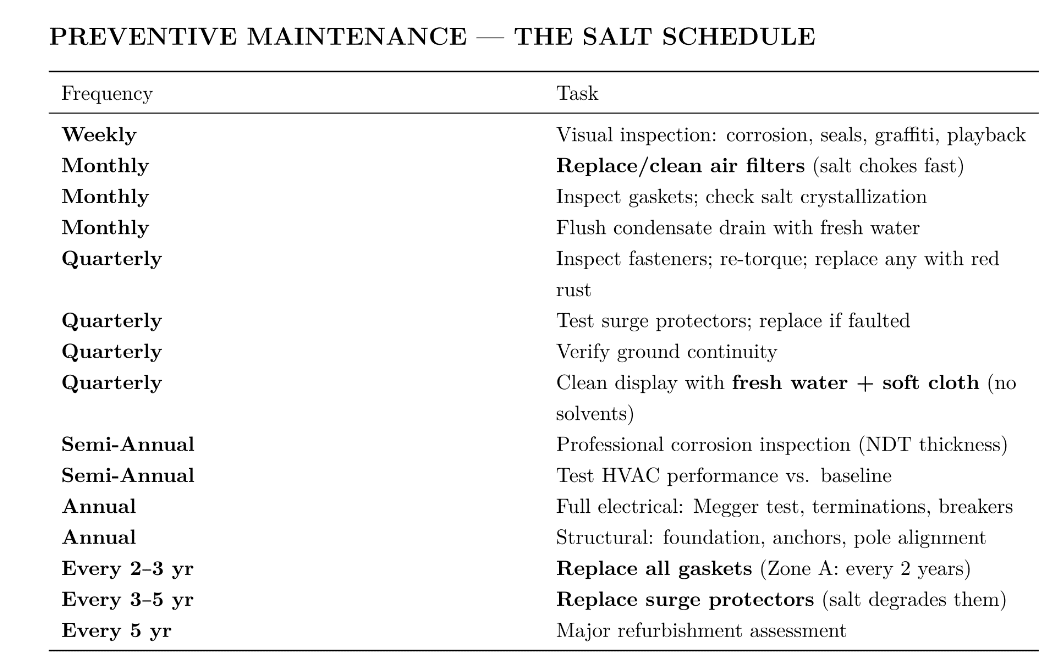

PREVENTIVE MAINTENANCE — THE SALT SCHEDULE

Frequency Task

Weekly Visual inspection: corrosion, seals, graﬀiti, playback

Monthly Replace/clean air filters (salt chokes fast)

Monthly Inspect gaskets; check salt crystallization

Monthly Flush condensate drain with fresh water

Quarterly Inspect fasteners; re-torque; replace any with red rust

Quarterly Test surge protectors; replace if faulted

Quarterly Verify ground continuity

Quarterly Clean display with fresh water + soft cloth (no solvents)

Semi-Annual Professional corrosion inspection (NDT thickness)

Semi-Annual Test HVAC performance vs. baseline

Annual Full electrical: Megger test, terminations, breakers

Annual Structural: foundation, anchors, pole alignment

Every 2–3 yr Replace all gaskets (Zone A: every 2 years)

Every 3–5 yr Replace surge protectors (salt degrades them)

Every 5 yr Major refurbishment assessment

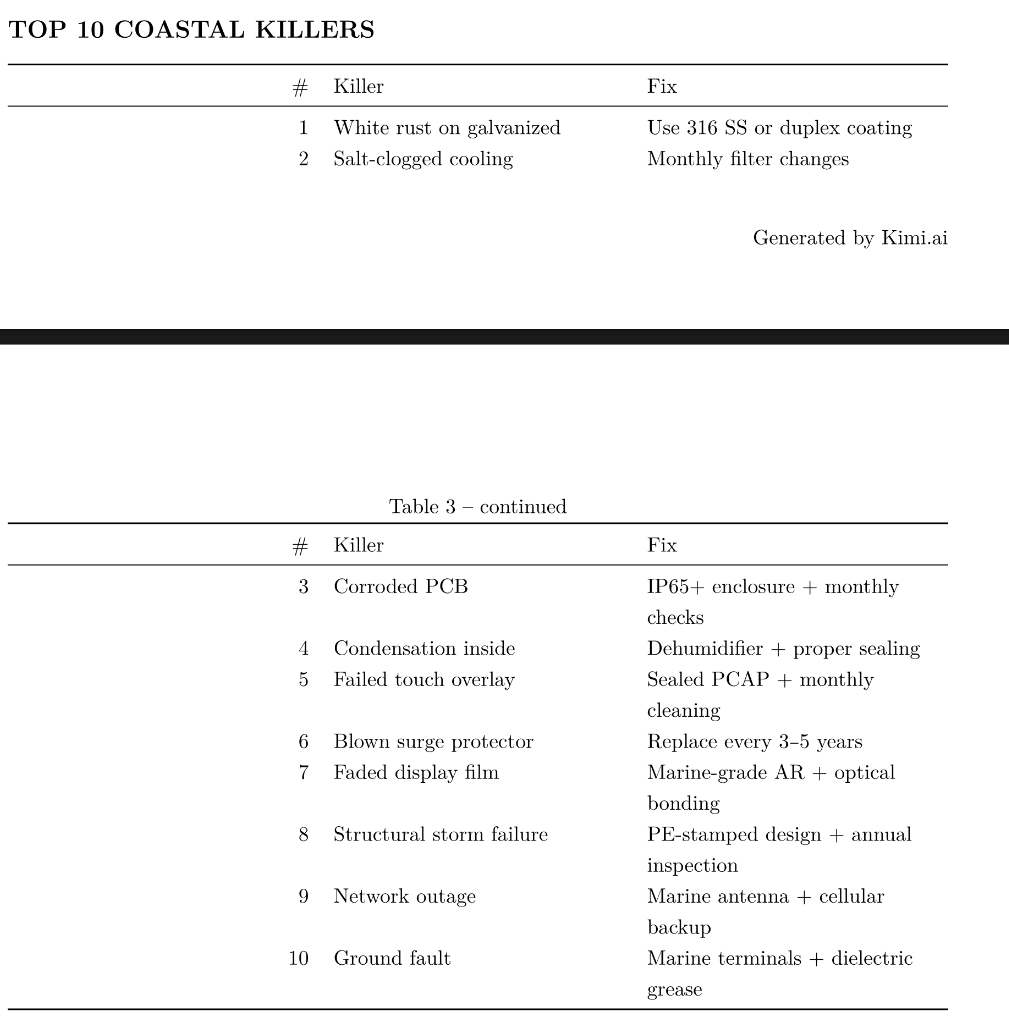

TOP 10 COASTAL KILLERS

#	Killer	Fix
1	White rust on galvanized	Use 316 SS or duplex coating
2	Salt-clogged cooling	Monthly filter changes

	Table 3 – continued
#	Killer	Fix
3	Corroded PCB	IP65+ enclosure + monthly
		checks
4	Condensation inside	Dehumidifier + proper sealing
5	Failed touch overlay	Sealed PCAP + monthly
		cleaning
6	Blown surge protector	Replace every 3–5 years
7	Faded display film	Marine-grade AR + optical
		bonding
8	Structural storm failure	PE-stamped design + annual
		inspection
9	Network outage	Marine antenna + cellular
		backup
10	Ground fault	Marine terminals + dielectric
		grease
